Industrial Valves

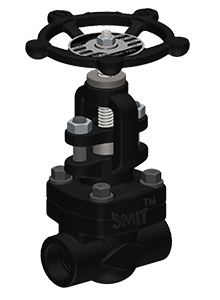

Smith Valves Forged Steel Globe Valves are Bolted Bonnet, outside screw and yoke type, Rising Spindle construction. SMITH Forged Valves Body and bonnet made from high quality forgings. SMITH Valve offer Forged Steel Globe Valves in size 1/2 (DN15) to 2 (DN50) to suit various critical, non-critical applications and pressure rating in 150#/300#/600#/800#/1500#/2500#. SMITH Forged Steel Globe Valve manufacturing range covers Regular Port and Standard Port both types of Valve. Regular Port globe valves have fast delivery or ready stock, for Standard Port globe valve do manufacturing on order basis. SMITH Valve offer Forged Steel Globe Valve in wide range of Body Materials like ASTM A 105 - Forged Carbon Steel, ASTM A 182 F304/F304L/F316/F316L - Forgated Stainless Steel,ASTM A 182 F11/F22 - Alloy Steel to suit industrial application. SMITH Forged Steel Globe Valves are available under any Third party inspection also. For High Pressure & Temperature application Stellited ST6 Face Seat & Disc available. Forged Globe Valve available is Threaded End, Socket Weld End, Butt Weld End and Flanged End Connection. For Flanged End Forged Steel Globe Valve flanges will be a welded with a valve body not integral forged.

Salient Features of Forged Steel Globe Valve

• Body & Bonnet made from high quality forging.
• The Forgings are precision machined for high performance.
• Ground Finish Stem.
• Self-Aligning Two Piece Gland.
• Back seating feature facilitates repacking of the stuffing box on line with the valve in fully open position.

Special Option of Forged Globe Valve

• Other Material of Construction (F304/F316/F304L/F316L/F11/F22)
• Flanged End, Flange Welded to Body, Rating 150#/300#/600#
• Butt Weld (Welded Neck)/Socket Weld/Screwed(BSP/NPT) Connection
• Seat & Disc Stellited ST6 Hard Face
• Special Trims on Request

Forged Steel Globe Valve Application

• Power Plants & Process Industries
• Petrochemical Plants & Refineries
• Fertilizers Plants
• Process & General Industries
• Sugar Industries & Distillery Plants
• Water, Steam, Gas, Oil & other Non-aggressive media
• Other application on request
