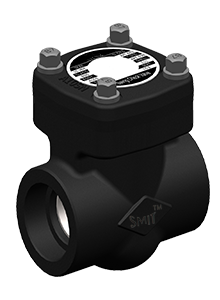

Forged Steel Swing Check
Smith Valves Forged Steel Check Valve are manufactured as per ISO 15761/API 602 Standard and Tested to API 598 Standard. DL manufacturing range covers Regular Port and Standard Port both types of Forged Steel Swing Check Valve. Regular Port Swing Check valves have fast delivery or ready stock, for Standard Port Swing Check valve domanufacturing on order basis. DL Valveoffer Forged Steel Swing Check Valve in wide range of Body Material like ASTM A 105 - Forged Carbon Steel, ASTM A 182 F304/F304L/F316/F316L - Forged Stainless Steel, ASTM A 182 F11/F22 - Alloy Steel to suit industrial application. DL Forged Steel Check valves are available under any Third party inspection also. For High Pressure & Temperature application Stellited ST6 Face Seat & Disc available. Forged SwingCheck Valve available is Threaded End, Socket Weld End, Butt Weld End and Flanged End Connection. For Flanged End Forged Steel Swing Check Valve flanges will be a welded with a valve body not integral forged .
Salient Features Of Forged Steel Steel Gate Valve
- A Compact But Extremely Sturdy Design for High Pressure & Temperature Service
- Bolted Cover Design, easy to open cover
- Piston Type Body Guide Disc
- Assure Perfect Alignment of Disc & Seat Ring
- Spring Loaded on request
- High Tesile B7/B8/B8M/2H Fasteners
Special Option Of Forged Steel Swing Check Valve
- Other Material of Construction (F304/F316/F304L/F316L/F11/F22)
- Flanged End, Flange Welded to Body, Rating 150#/300#/600#
- Butt Weld (Welded Neck)/Socket Weld/Screwed(BSP/NPT) Connection
- Seat & Disc Stellited ST6 Hard Face
- Special Trims on Request
Forged Steel Gate Valve Application
- Power Plants & Process Industries
- Petrochemical Plants & Refineries
- Fertilizers Plants
- Process & General Industries
- Sugar Industries & Distillery Plants
- Water, Steam, Gas, Oil & other Non-aggressive media
- Other application on request
